Containerized parallel module

Aerogasol AG1200Q4CM15NB

The highest-output container in the range: four Cummins 15-litre gas engines with Leroy-Somer alternators and DEIF AGC150 parallel control. 200 kW more continuous output in the same 40 ft footprint, with the best electrical efficiency of the family.

Request project quote Technical specifications

Continuous power (COP)1,000 kWPrime power (PRP) 1,200 kW · 4 × 250 kW continuous / 4 × 300 kW prime

Catalogue price¥1,490,000Catalogue price, incl. VAT, EXW / FCA works

Electrical efficiency36.0 %Gas consumption 0.279 Nm³/kWh

EngineCummins4 × Cummins 15NNS6B500A (gas conversion)

AlternatorLeroy-Somer TAL-A46-FDEIF AGC150

AG1200Q4CM15NB — Engine · Cummins 15-litre natural-gas platform, in-line six (manufacturer image)

AG1200Q4CM15NB — Concept layout · four gas generator sets, roof-mounted radiators and common exhaust header in one 40 ft container

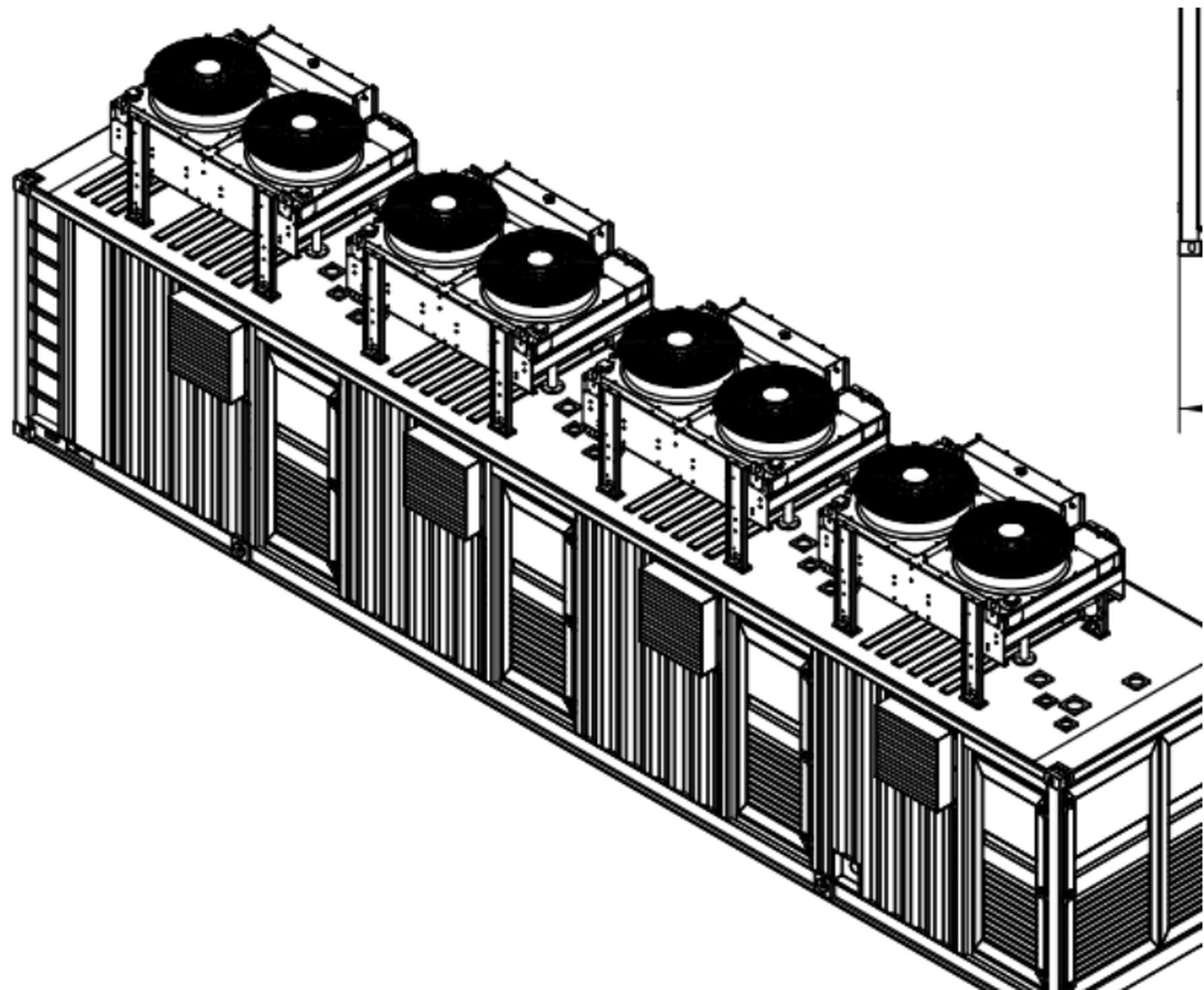

AG1200Q4CM15NB — Engineering drawing · container with roof radiators, side louvres and the control-cabinet bay

Technical specifications

Key selection data.

Ratings are stated under ISO 8528-1 / ISO 3046-1 reference conditions. Detailed electrical, gas and site-condition data are finalized in the project technical agreement.

Continuous power (COP)1,000 kW

Prime power (PRP)1,200 kW

Rated capacity1,250 kVA · 1,804 A

Voltage / frequency400 / 230 V · 50 Hz · 1,500 rpm

EngineCummins 15NNS6B500A gas conversion · 14.5 L · in-line 6

AlternatorLeroy-Somer TAL-A46-F · class H / IP23

Parallel controlDEIF AGC150 · Chint frame breakers

Gas supplyDN80 · 50 kPa or 0.45–0.60 MPa · CH₄ ≥ 80 % · MN ≥ 70

Gas consumption279 Nm³/h at 1,000 kW

Container40 ft · 12 192 × 2438 × 2591 mm · ≈ 20.5 t with roof radiators

Ambient−40 to +45 °C · altitude ≤ 1,300 m

Noise≤ 95 dB(A) at 1 m

Scope of supply

Everything inside the container.

The catalogue price covers the complete containerized module, factory load-tested and certified. Transport and site works are quoted per project.

INCLUDED

Container package

Gas engines4 × Cummins 15NNS6B500A gas conversion
Alternators4 × Leroy-Somer TAL-A46-F, brushless, class H / IP23
Base framesSteel base frames with high-elasticity rubber mounts
Starting system24 V electric start, 2 × 200 Ah maintenance-free batteries per unit
Gas trainPer unit: DN80 regulator, emergency-shutdown solenoid valve, flame arrester, filter and gauges
Cooling4 roof-mounted copper radiators with driven fans; hot air does not recirculate into the container
Cold-start packageJacket-water heater 4 kW / 220 V and oil heater per unit for −40 °C starting
ExhaustIndustrial silencer and stack per unit with spark-arrestor cap
Parallel switchgear4 parallel cabinets with DEIF AGC150 controllers, copper busbar and Chint intelligent frame breakers; automatic synchronization of all four units
Multi-unit monitoringLocal monitoring screen via RS485 / Ethernet: electrical data, engine parameters, alarms and run records
Container40 ft ISO container, insulated and acoustically lined, with louvres and service doors
Gas safetyGas leak detectors, explosion-proof lighting, emergency lighting
Factory testFull-load test of every unit before dispatch; test gas included
DocumentationOperation and maintenance manuals (CN / RU), factory test report, EAC certificate of conformity
Spares and toolsAir filter, oil filter and spark plugs per unit; special tool kit

NOT INCLUDED / OPTIONAL

Quoted per project

Freight and insuranceFrom the works to the destination; quoted per project
Destination chargesPort, customs and inland transport at destination
Site installationFoundation, gas and electrical connection, on-site commissioning
Remote monitoring4G / Ethernet gateway and cloud dashboard
Service packagesExtended warranty, spare-parts kits for 4,000 h and 8,000 h

Commercial terms

Price, delivery, warranty.

Catalogue terms for a single container. Project quotations cover quantity, destination and site scope.

Catalogue price¥1,490,000 incl. VAT, EXW / FCA works

Delivery60 days after receipt of advance payment

Payment30 % advance, balance before shipment

Warranty12 months or 4,000 running hours, whichever comes first

CertificationRussian EAC certification arranged by the seller

SupportFree remote video guidance for installation and commissioning; 24 h technical response; parts supply

Need project customization?

Match the package
to your gas and load.

Send the gas composition, required output, operating hours, site climate and grid arrangement. Aerogasol will return a configuration basis for discussion.

Contact engineering

* Values marked with an asterisk are derived from nominal platform data and are not a performance guarantee. Container ratings are stated at continuous power; final ratings depend on gas composition, ambient temperature, altitude, frequency, emissions package and project duty. Catalogue prices are EXW / FCA works, incl. VAT, and exclude freight, insurance, destination charges, import duties and site installation.
